Compact Rock Breakers DEMO

Attachments / Compact Rock Breakers DEMO

Hard-hitting. Easy on your machine.

Built-in blank fire protection keeps your carrier safe under load
Lower operating pressure reduces fuel consumption & running costs
Unique piston design cuts power demand on your carrier
Direct mount or quick hitch compatible with any carrier
Backed by a 3 year warranty with parts & support on hand

Less fuel.
Lower pressure.
Serious power.

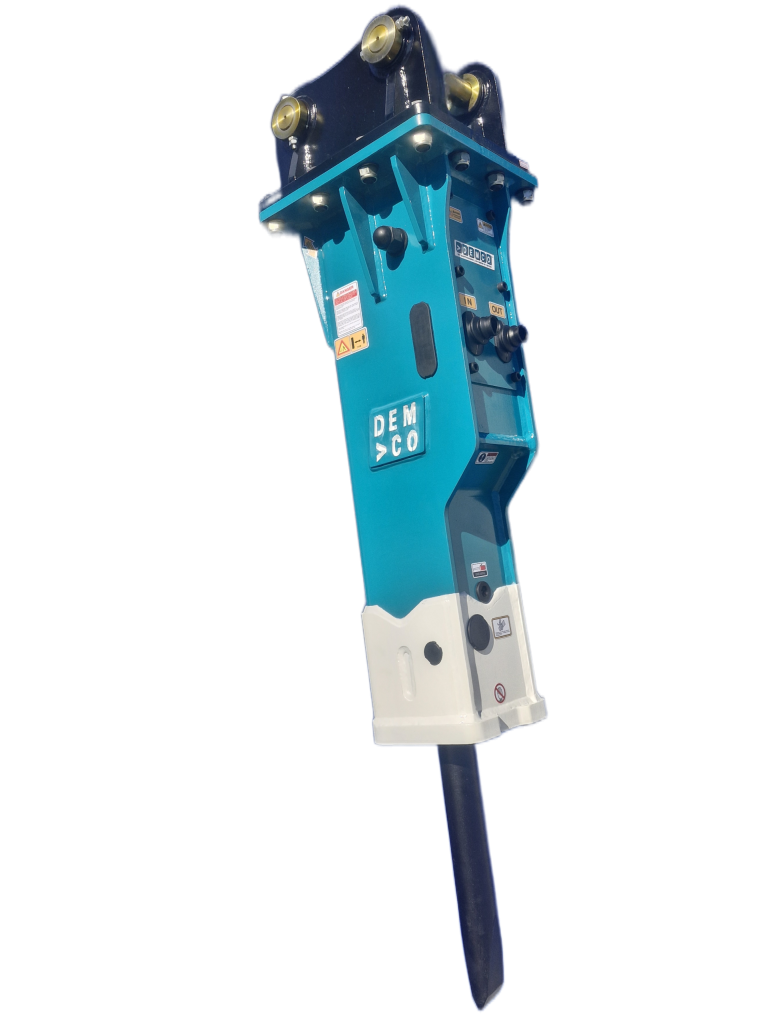

DEMCO compact rock breakers

Hit harder with less. Lower operating pressure, reduced fuel consumption, and reinforced carrier protection – all backed by Earthworm’s NZ warranty and support.

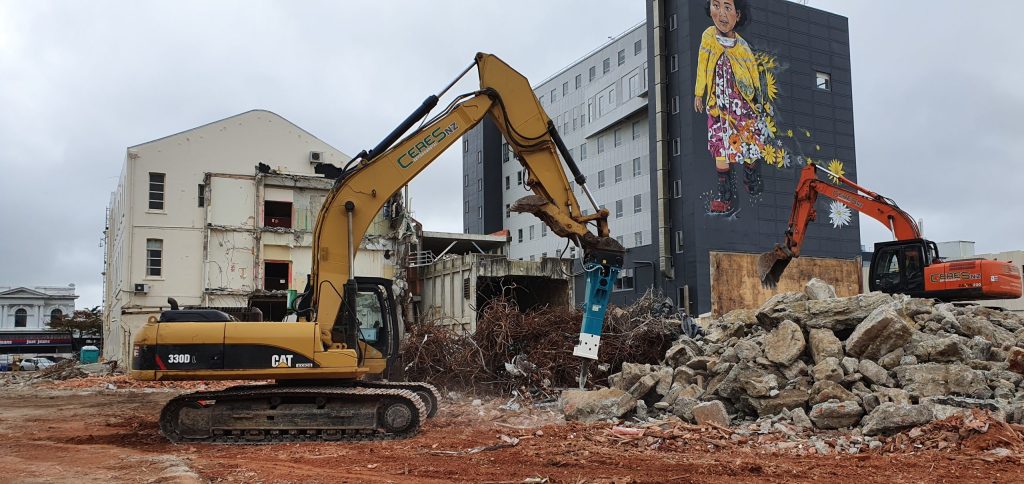

Demolition? Done.

High impact frequency makes compact rock breakers the go-to for breaking concrete and asphalt quickly and efficiently on any demolition site.

Concrete and asphalt demolition
Fast impact frequency for quick throughput
Manoeuvrable enough for confined spaces

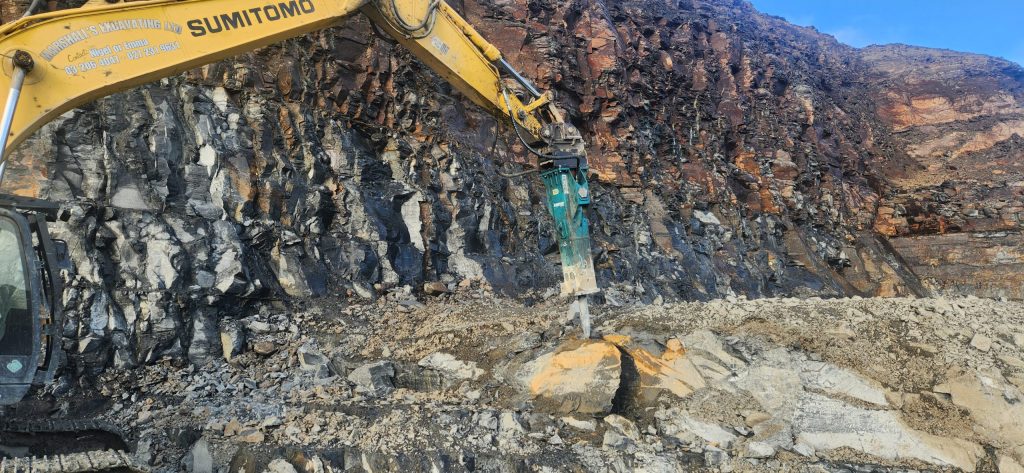

Oversize? Managed.

Reliable secondary breaking keeps material moving and operations running smoothly, reducing oversized rock without slowing the process down.

Secondary breaking in quarry & mining operations
Recycling & material processing
Consistent impact force for high-volume work

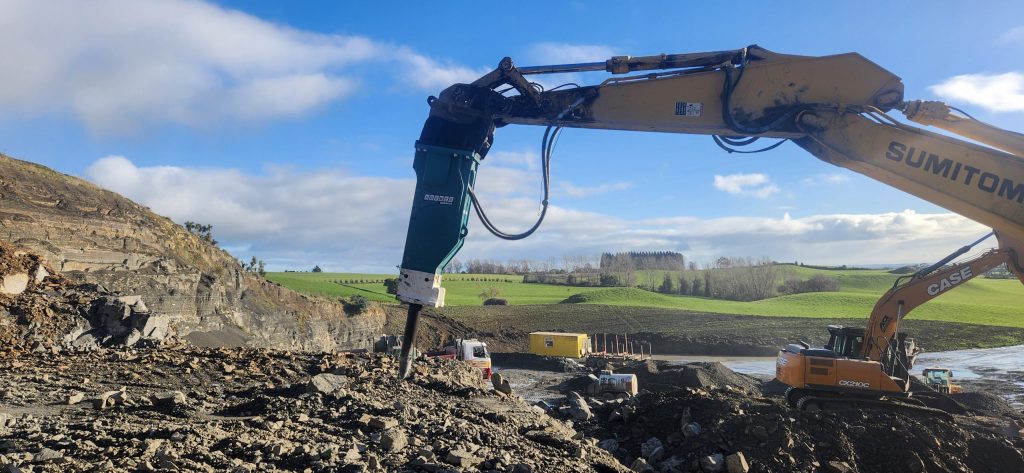

Tough ground? Covered.

Fast fitment to your excavator means compact rock breakers are ready to work wherever the job takes you.

Easy fitment to a range of excavators
Go-anywhere size for tight or remote sites
Versatile choice for civil & infrastructure work

Compact Rock-Breakers

From three New Zealand locations, Earthworm supplies a range of compact rock breakers to fit directly to your carrier.

Hydraulic Rock Breaker Specifications

Compact models — DMB08 to DMB60

	DMB08	DMB12	DMB18	DMB19	DMB22	DMB38	DMB60
Operating weightkg	Top: 80 Box: 100	Top: 100 Box: 120	Top: 196 Box: 216	Top: 206 Box: 226	Top: 298 Box: 320	Top: 375 Box: 445	Top: 577 Box: 600
Operating pressurebar	90–1201	90–1201	90–1201	90–1201	110–1401	120–1501	130–1601
Flow ratel/min	15–25	20–30	25–40	25–50	40–70	50–90	60–100
Tool diametermm	40	45	53	58	68	75	85
Carrier weightton	0.5–1.51	1.2–3.02	2.5–4.55	3.0–4.55	4–78	6–913	7–1415

Mid-range models — DMB90 to DMB310

	DMB90	DMB140	DMB180	DMB190	DMB230	DMB290	DMB310
Operating weight kg	Top: 908 Box: 928	Top: 1,431 Box: 1,460	Top: 1,675 Box: 1,705	Top: 1,936 Box: 1,948	Top: 2,237 Box: 2,890	Top: 2,838 Box: 2,890	Top: 3,065 Box: 3,140
Operating pressure bar	150–170	150–170	160–180	160–180	160–180	160–180	160–180
Flow rate l/min	80–110	90–120	100–150	120–180	140–190	180–240	200–260
Tool diameter mm	100	125	135	140	150	155	165
Carrier weight ton	11–16 24	16–21	18–21	18–26	23–28	28–35	30–45
